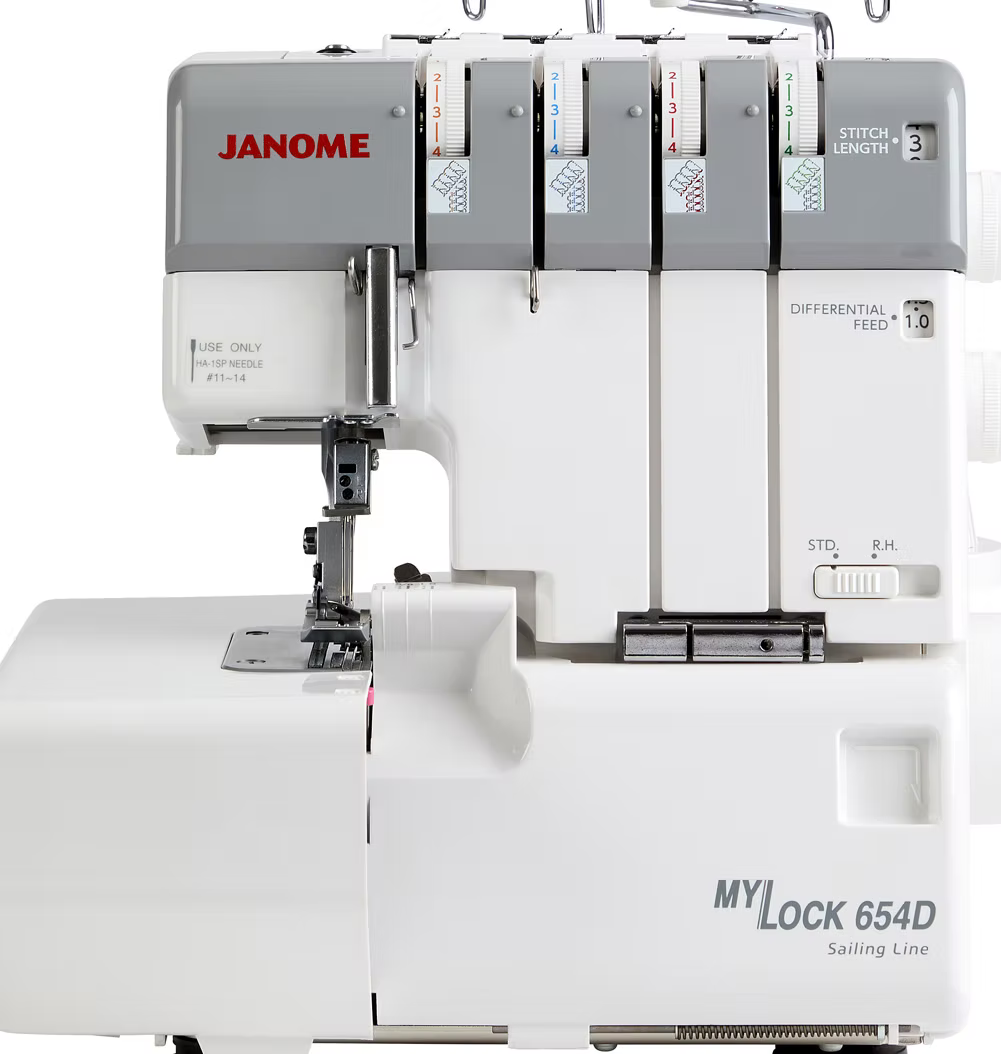

Janome ML654D Overlocker
Janome ML654D Overlocker
Couldn't load pickup availability
The NEW MyLock 654D overlocker has sailed in! This 2/3/4 thread MyLock 654D overlocker from JANOME has joined the fleet - with HANENITE* vibration suppression, making it quiet and a pleasure to use.
HANENITE is a registered trademark of Naigai Rubber Industry Co., Ltd.
-
8-PIECE FEED DOG
-
2, 3 OR 4 THREADS FOR OVERLOCKING, FLAT LOCKING, AND ROLLED HEMMING
-
1 OR 2 NEEDLES
-
COLOUR CODED THREAD GUIDES AND THREADING REFERENCE CHART INSIDE FRONT OPENING COVER
-
SLIDE-IN THREAD PRE-TENSION THREADING
-
PRESSER FOOT TENSION RELEASE
-
SEWING SPEED UP TO 1,300 S.P.M. (STITCHES PER MINUTE)
-
ADJUSTABLE STITCH LENGTH 1- 5MM. 3MM IS STANDARD
-
ADJUSTABLE CUTTING WIDTH (MM) USING LEFT NEEDLE 5,3 TO 7.3
-
NOT USING LEFT NEEDLE 3.1 TO 5.1
-
•DIFFERENTIAL FEED RATIO 0.5 TO 2.25
-
ADJUSTABLE FOOT PRESSURE AND SNAP-ON FEET
-
USES JANOME BALLPOINT HAX1SP NEEDLES
-
WIDE CHAINING FINGER. EASY CONVERSION TO ROLLED HEM, NO NEED TO CHANGE THE CHAINING FINGER
-
RETRACTABLE UPPER KNIFE WITH EASY PUSH RELEASE
-
FACE PLATE THREAD CUTTER
-
FOOT CONTROLLER
-
WASTE CHIP BOX INCLUDED
-
MOULDED CARRY HANDLE
-
METAL BASE COVER
-
MACHINE WEIGHT 7 KG
The 8-piece feed dog enables fabrics to glide under the foot. Refinements like the gentle curve at the tip of the presser foot helps for a smooth start. The clear visibility for the trimming the fabric is a plus for keeping on target, along with the differential feed system for improved operation when sewing over multiple layers of fabric (Bi-Level operation). And the easy change presser foot also has added texture on the underside to assist in fabric feeding and fabric slippage.
An easy threading lower looper mechanism with colour coded threading chart is located inside the front sliding cover, this makes getting started and changing thread colours easy!
It’s fast and finishes like a dream. The powerful motor delivers consistent performance. Easy changeover to rolled hemming, the retractable upper knife release operation is a gentle push. The reduced pressure when lowering the knife to change settings e.g. to a rolled hem makes it easy. There is no changing needle plates or chaining fingers. The wide chaining finger helps give a smooth delivery of thread, even on bulky, stretchy and fine fabrics, resulting in less puckering.
The excellent needle visibility with white LED light helps for finishing seams and curves in no time. The MyLock 654D is a stable, smooth sailing overlocker with Hanenite feet for a quiet, low vibration operation, making it a pleasure to use.
The MyLock 654D is an investment in performance, this is an all-round overlocker to take customers through professionally finishing the vast array of modern fabrics. Suitable for all users from beginners where the colour coded threading guide is a must, to professionals looking for a reliable all-round overlocker to meet any finishing challenges.
Share

Collapsible content
Full Specification
2, 3 & 4 Thread Overlocker
Category: D
Machine Size: W287mm x H267mm x D268mm
Flat Bed
Maximum Stitch Length: 5mm
Maximum Sewing Speed: 1300 s.p.m. (appx.)
Differential Feed Ratio: 0.5 to 2.25
Approximate Weight: 7.0kg
8 Piece Feed Dog
Pre-Tension Slide-in
Wide Chaining Finger
Thread Tension Adjustment – Manual
Lamp – 1 x LED
Hanenite Rubber Feet
Cutting Width Left Needle 5.3 – 7.3
Adjustable Foot Pressure
Cutting Width Right needle 3.1 – 5.1
Lower Looper Pre-Tension Setting (Rolled Hems)
Retractable Upper Knife
Improved Snap On Presser Feet
Colour Coded Threading Guide
Plastic Dust Cover
Easy Threading Lower Looper
Origin: Taiwan
Included Accessories
787172004 Accessory Box
784809008 Spanner
802424004 Lint Brush
822020503 Spool Caps x 4
202024002 Needle Threader
784223002 Spool Holders x 4 (Cones)
784860100 Needle Set
624806006 Spool Nets x 4
741814003 Oil
788618000 Spreader
784810002 Screwdriver (Large)
624861001 Tweezers
792030005 Screwdriver (Small)
788011007 Upper Knife
787171A06 Waste Chip Box
C-2085-1 Foot Control
Instructional DVD QR Code
Instruction Book
Optional Accessories
202039000 1/8” & 3/16” Piping Foot Set
202035006 Cording Foot B
202041108 Beading Attachment & Foot
202523006 Elastic gathering Attachment
202040004 Blind Stitch Foot
202036100 Gathering Attachment
202525008 Cloth Guide
200248101 Gathering Foot
202034005 Cording Foot A
202033004 Taping Foot with Reel
